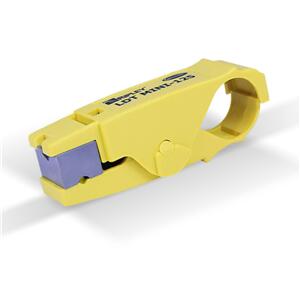

LDT-MINI-125 - RIPLEY LDT-MINI-125 LIGHTWEIGHT CABLE STRIPPING TOOL FOR MINI COAX CABLE (22-24 AWG)

Ripley LDT-MINI-125 Lightweight Cable Stripping Tool for Mini Coax Cable (22-24 AWG)

Get the perfect trim on all of your mini cables with Ripley's LDT-MINI-125. This stripper is a lightweight cable prep tool, with a compact body design that allows cable preparation of Mini Cable without any adjustment or blade cassette change out. The difference with the LDT-MINI-125 is that it leaves 1/8" braid but still works with 22-24 AWG Mini Coax Cable.

Features:

  • Built in strip stop for precise preparation every time
  • Lightweight, impact resistant "High Visibility" yellow polymer construction
  • Superior quality tool steel blade cassettes
  • Blade cassettes color-coded and marked with cable series type for easy identification

Note: Tool is not intended for Plenum Series Cable Construction

Specifications:

  • One step cable preparation precisely exposes the center conductor by 5/16" (7.93mm) and removes the proper length of jacket at 1/4" (6.35mm) leaving 1/8" of braid.
  • Will perform 3500+ preparations under normal usage
  • Length: 4 in.
  • Weight: .8 oz.
  • Made in the U.S.A

The LDT-MINI-125 Prepares the following Cables:

  • Belden - YR 46940, 1283, 1283S, 1855, 1855A, 7534
  • Beta Cavi - N35
  • CommScope: 7534, #23AWG, 7538, 7538B, 7539/7539H, 7301S
  • Honeywell - 5019, 50 29, 5099
  • Times Fiber - T59M67T-VBV, 759MQ65/40-VBV
